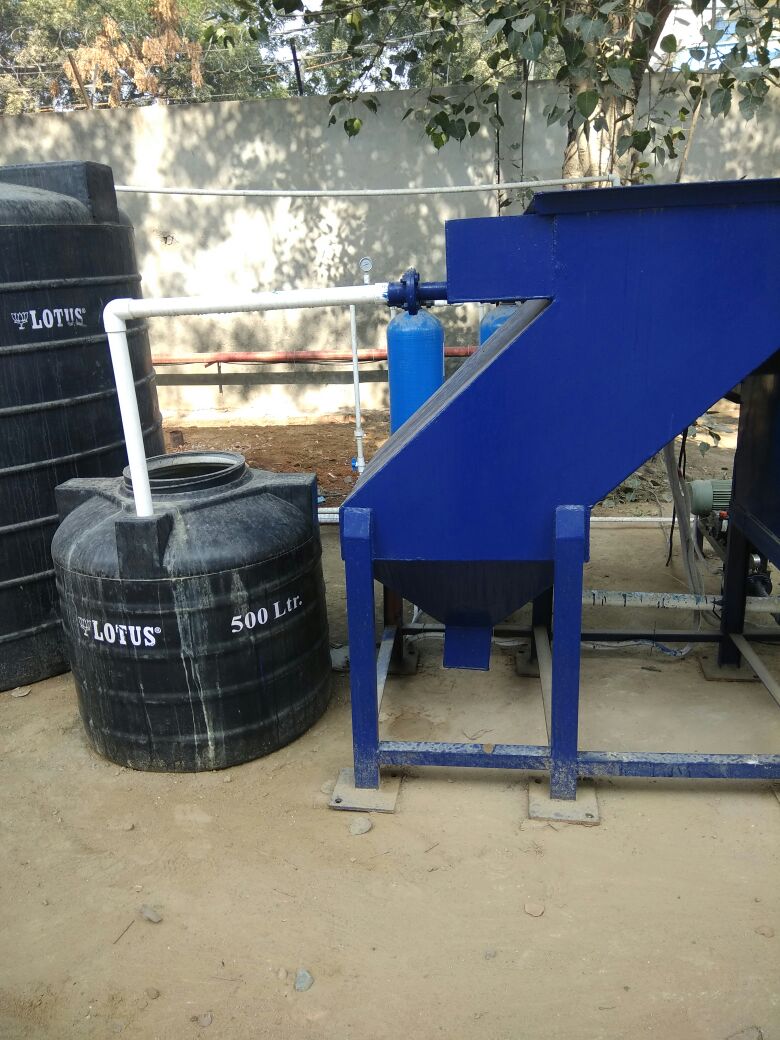

Lamella Plate Settler (Inclined Plate Settler) is advanced and integrated clarification technology because the plates can have real mechanical integrity whereas the tube modules (Tube Settler) are flimsy thin plastic boxes. But finding installation room for a lamella settler can be tough. But, the lamella is all usable area because the tank walls and the plates are parallel. But the tube settler has dead area because any tubes near the wall are dead ends, so small diameter tube settlers don't work -- they need to be large diameter (or large rectangles) so the percentage of dead space is minimized (Picture a two-foot deep 45-degree tube module in a two-foot square tank) water could not flow at all because every tube would be a dead end with one end or the other running into the vertical walls of the tank.

Lamella plate settlers are designed for efficient removal of readily settle able solids. The compact, small footprint design requires less installation space than conventional or tube type clarifiers. The design incorporates slanted plate settling surfaces pitched at a 55° angle from the horizontal with uniform plate spacing. Due to plate angle the solids slide down the plates into the solids hopper below the plate pack. The simple, inexpensive design, combined with no moving parts or sludge auger makes it the easy to install, operate and maintain.

Some Major Advantages
• It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
• Less filter backwashing equates to significant operating cost savings for both water and electricity.
• New installations using Plate Settlers can be designed smaller because of increased flow capability.
• Flow of existing water treatment plants can be increased through the addition of Plate settlers.
• Plate settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.

DELIVERY SCHEDULE
Delivery Period will start from date of receipt of Technically & Commercially clear Purchase Order
Drawings will be provided for approval within a week after receipt of request from you and you will Provide drawing approval within 1 week.
In case you have any comments/observations or any change required on Drawing submitted for approval, please get back to us within 7 days else we will presume that drawings are in order and shall be released for production. Any delay in approval of drawings by you beyond one week or any time taken to redo the drawings after approval until re¬-approval, the delivery will be extended accordingly.
Delivery starting on Ex¬ works basis 	: 	6-8 weeks

Rs. 5000/Head/ Day (8 hours) will be charged for supervision for Erection & Commission and all accommodation (Lodging & Boarding) will be extra or  in client scope
 Though erection and commissioning is performed by client and client request from us to be present in time commissioning. is payable.
STANDARD TERMS AND CONDITIONS
SPECIFICATIONS
Specifications, dimensions, design, description, shades of paint etc are not binding on us in minute details and are subject to reasonable alteration / change without notice.
INSPECTION
If necessary, the goods will be offered for inspection at our works/our supplier’s works. The date of inspection will be intimated about one week in advance. If inspection is not carried out on the date mentioned, we shall be free to dispatch the equipment as per the terms of delivery.
If payment is not made within 15 days from the date of Performa Invoice, we reserve the right to divert the ordered material. We will give fresh delivery period and new price at the time of diversion which will be binding on the purchaser and contract cannot be rendered void on this account.  If the goods are not diverted, charges for storage, insurance and interest at 1% of the Invoice value each week/part thereof commencing 15 days from the date of Proforma Invoice will be charged. Warehousing charges are subject to a maximum of 5% of the Invoice value.
WARRANTY
The equipment supplied by us shell be warranted for 12 months from the date of installation and commissioning or 18 months from the date of supply for any manufacture defect, however defect arise due to miss handling, incorrect operation wear and tear shell be entertained with reasonable charges. The warranty of all instruments and pump and motor and other equipment except prefabricated items will be covered under actual manufacturer’s warranty conditions.
HANDOVER
Unless and otherwise specified in the order and accepted, handing over of the equipment and / or installation would be considered as completed and a formal completion certificate shall be issued by the purchaser / user.
The equipment/system, to be supplied by us, shall be site erected and commissioned at purchaser’s site.
This equipment/system shall be legally transferred to the buyer only after realization of full and final payment.
MODE OF DELIVERY
The goods may be dispatched in one or more lots at our option. If we are required to dispatch the goods on behalf of customer, we can arrange to do so on freight to pay basis on the understanding that no liability is attached to us. In such case, Freight charges contracted by us on behalf of the purchaser shall be final and binding on the purchaser.
CANCELLATION
Order received and acknowledged by us shall not be subject to cancellation, either wholly or partly for any reason whatsoever without our written consent.
FORCE MAJEURE
The order from the purchaser is subject to force majeure by which it means, such as war, invasion, civil disobedience, govt. orders or restrains, strike, lockout, riots, fire, epidemics, sabotages, trade embargoes, earthquakes, floods, accidents, breakdown of machines, delay or inability to obtain labour, raw material, wagons, shipping space or any other process, which is beyond our and our supplier’s control.

JURISDICTION
All contracts between purchaser and ourselves are deemed to have entered into in DELHI and are therefore subject to the Jurisdiction of Courts in DELHI.

Excluded

Extra as per actual

Thickness of MS Plate shall be 5mm
Lamella Plate Thickness -4mm
